In industries that rely on heavy machinery, vibrationmonitoring and analysis is a mission-critical capability. Hidden faults can belike ticking time bombs, destined to trigger equipment failure and stallproduction.
Vibration monitoring and analysis is a preventive maintenance technique that allows you to detect anomalies in the vibration patterns of rotating equipment and address those issues early on. Being equipped with real-time vibration data and insights can mean the difference between costly, stressful breakdowns and a smooth, efficient, energy-saving production line.
How does vibration monitoring and analysis work, and how can you incorporate it into your maintenance strategy? In this blog post, we'll delve into the particulars and benefits of vibration monitoring systems and how your team can use them to drive huge gains in efficiency, productivity, and equipment reliability.
What is Vibration Monitoring?
Vibration monitoring involves the use of sensors to measure the vibration levels of machines and equipment. These sensors are typically attached to a machine's housing or rotating parts and can detect minute changes in vibration patterns.
By analyzing the amplitude, frequency, and patterns of detected vibrations, technicians can identify signs of wear, misalignment, or other mechanical issues before failure occurs. The goal of this approach is to intervene before a small problem escalates into significant damage or unplanned downtime.
How Vibration Monitoring Enables Predictive Maintenance
Traditionally, maintenance was either reactive (fixing machines after they fail) or preventive (scheduled repairs or replacements based on time intervals). Predictive maintenance, enabled by real-time monitoring, focuses on predicting when a failure is likely to occur based on the machine’s current condition.
Vibration monitoring makes this possible by continuously tracking the machine’s health. When vibrations deviate from the normal pattern, it signals that something is wrong. By acting on these deviations early, companies can avoid unexpected failures, reduce repair costs, and extend equipment life.
Vibration Monitoring Systems: Real-Time Data, Analytics, and ExpertInsights

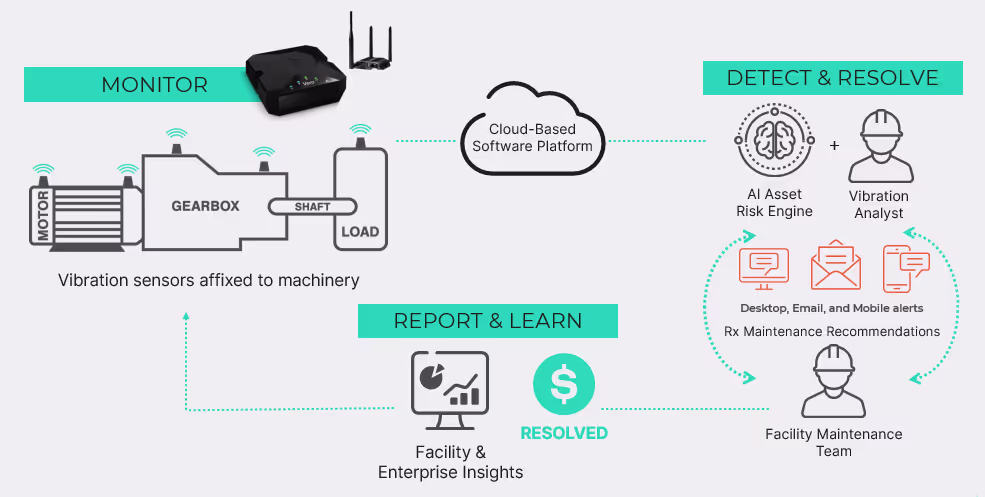

A machine vibration monitoring system typically consists of sensors and software, using Internet of Things (IoT) technology to capture and transmit vibration data so AI-powered software can analyze it to detect abnormalities and alert maintenance personnel. Ideally, a vibration analyst then filters out false positives, helps pinpoint root causes, and provides the maintenance team with recommended next steps.
Continuous vibration monitoring is normally used for critical assets such as motors, gearboxes, turbines, and bearings. Real-time data from these systems allows maintenance teams to respond quickly to emerging issues, minimizing downtime and improving the reliability of the machinery. Forless-critical Tier 2 and Tier 3 machinery, route-based vibration monitoring can be employed; periodic vibration testing along a set route provides regular snapshots of asset health.
What Vibration Patterns Can Reveal
Each machine has a unique vibration signature, which represents its normal operating conditions. By establishing a baseline vibration level, engineers can detect deviations that indicate potential problems. Variations in amplitude, frequency, or waveform patterns can reveal issues such as imbalance, looseness, or worn bearings.
Changes in vibration patterns often signal potential issues in the machine. A significant change in the frequency domain could indicate misalignment, while variations in vibration amplitude may suggest looseness or imbalance. Detecting these shifts early allows maintenance teams to address the root cause of the problem before it leads to more serious damage.
Combining Vibration Analysis with Other Condition Monitoring Techniques
Condition monitoring is a broader strategy that encompasses several proactive maintenance techniques. The aim of this approach is to keep production running smoothly by addressing issues as they arise, thus reducing the risk of equipment failure. It's a significant shift from traditional time-based maintenance, where repairs or replacements occur after a set period, regardless of equipment condition.
When oil analysis and other condition monitoring techniques are used in conjunction with machine vibration analysis, maintenance teams can detect signs of degradation or failure even earlier and with greater precision. As a result, they can optimize their work schedules while ensuring assets continue performing at their peak.
Vibration + oil analysis is the ultimate weapon against unplanned downtime. Download the white paper to learn how to maximize the value of using both condition monitoring techniques.
What Are the Benefits of Vibration Condition Monitoring?
The benefits of vibration condition monitoring are numerous, including the ability to reduce downtime by detecting faults early, which helps prevent unexpected machine failures. Continuous monitoring also enhances the overall reliability of machinery, ensuring that potential issues are identified and addressed before they escalate. Additionally, it improves maintenance efficiency by allowing teams to focus on critical problems rather than performing unnecessary inspections, optimizing both time and resources.
Early Fault Detection and Resolution
Machines are subject to various forces that cause wear over time, especially those with rotating elements or reciprocating components. Misalignment, imbalance, or insufficient lubrication can generate excessive vibrations, which are early indicators of potential failure. Analyzing these vibrations enables maintenance teams to detect problems such as:
- Bearing defects — Vibrations can reveal issues with bearings, including wear or improper lubrication.
- Misalignment — When shafts or rotating parts are out of alignment, it causes abnormal vibration patterns.
- Imbalance — Rotating equipment may develop imbalances that lead to higher levels of vibration.
- Gear mesh defects — Gears with damaged teeth or wear can produce distinct vibration signals.
Optimal Machine Health and performance
Vibration analysis provide the insights operators need to take timely corrective actions such as re-aligning shafts, balancing rotating parts, or addressing lubrication issues. Ultimately, this reduces wear on the machine, extends its lifespan, improves reliability, boosts productivity, and minimizes the risk of sudden failure.
Enhanced Maintenance Efficiency
By preventing catastrophic failures and reducing the need for reactive maintenance, companies can minimize equipment downtime, leading to significant cost savings. With a predictive maintenance approach, maintenance teams can schedule repairs only when needed, optimizing resources and reducing the time spent on unnecessary maintenance.
Read the cement industry vibration monitoring case study with a single facility achieving a $1.1 million cost savings and 57X ROI in just six months.
5 Best Practices for a Successful Vibration Condition Monitoring Program
Implementing an effective vibration monitoring program doesn't need to be a heavy lift. With an end-to-end solution offering value-added services such as criticality assessment, installation, and ongoing support, your facility can be up and running and enjoy the benefits of a leading-edge vibration monitoring program with very little effort.
1. Choose the Right Sensors
For the sake of accuracy, it’s essential to choose the right sensors tailored to the equipment and the specific faults you aim to detect. Accelerometers are among the most common sensors, capable of detecting high-frequency vibrations. However, different machines may require various types of sensors depending on their operating conditions. Your provider should have specific recommendations based on your unique setup and needs.
2. Use Historical Data for Benchmarking
Collecting and analyzing historical vibration data is critical for establishing benchmarks for normal operating conditions. Once you've defined your normal range, you can establish vibration thresholds that trigger alerts when vibrations exceed acceptable levels. From there, you can identify trends and predict potential issues based on past performance.
3. Lean on Human Expertise
No AI-powered vibration monitoring system comes without the occasional false alarm. In fact, false positives can overwhelm maintenance teams and distract from legitimate issues. Your provider should be on hand to filter out bad alerts, enabling you to focus your time and resources on legitimate issues and offer prescriptive maintenance recommendations.
4. Integrate Condition Monitoring into Daily Operations
Vibration monitoring should be part of a broader strategy that includes oil analysis and other condition monitoring techniques. Making condition monitoring an integral part of your daily operations is essential for realizing the many benefits and full value of a predictive maintenance strategy. Apart from receiving and responding to timely alerts, regular analysis of vibration data is crucial for detecting trends and identifying potential issues early. Regularly scheduled data reviews, ideally with a dedicated vibration analyst on your provider's team, will allow you to track trends over time and make informed decisions about when to perform maintenance or repairs.
5. Collaborate Across Teams
Effective vibration monitoring relies on close, ongoing collaboration between maintenance teams, operators, and engineers. By sharing data and insights, teams can work together to improve equipment performance and reliability as well as overall operational efficiency.
Tap Into the Value of Vibration Monitoring and Analysis
Vibration monitoring and analysis are invaluable tools for maintaining the health of industrial machinery. By enabling predictive maintenance and providing real-time insights, vibration monitoring can save you time and money by helping reduce downtime, improve reliability, extend equipment lifespan, and enhance the efficiency of maintenance teams. As condition monitoring systems become more sophisticated, they have the potential to offer even deeper insights into machine performance. Manufacturing will continue to see more automated and intelligent monitoring systems that can unlock even greater predictive power—and with it, increasing benefits for people, the plant environment, and the planet. Fortunately, adopting this predictive maintenance approach can be a straightforward, friction-free process with incredible speed to value. In fact, with the right provider guiding you, the transformation to a calmer, more efficient plant starts on day one.
